How do I choose an FWM AV model?

Start with the gas service and the required flow, then weigh duty cycle, inlet and outlet pressure, ambient temperature, humidity, approach temperature, and your installation layout. The nominal 8-hour nitrogen ratings give a starting point for selection, but the right model for your site is confirmed by FWM engineering review.

Are the ratings guaranteed for all operating conditions?

No. The published numbers are nominal 8-hour nitrogen vaporization ratings for model-selection guidance only. Real performance shifts with ambient temperature, humidity, wind, frost buildup, pressure drop, run time, and spacing. FWM engineering review confirms the rating that applies to your conditions before purchase.

Can multiple FWM AV units be manifolded together?

Yes. FWM AV units can be manifolded for added capacity, redundancy, or defrost rotation. FWM reviews common inlet and outlet header sizing, pressure drop, unit spacing, and controls so the bank performs as intended. Final header and control design is set during engineering review.

Can FWM AV units support continuous duty?

Yes. Ambient air vaporizers frost over time, so continuous service is supported by arranging multiple units or banks with switching so one set runs while another defrosts. FWM reviews flow, switching intervals, and site conditions to size the arrangement, and confirms the final design during engineering review.

What gases are supported?

Selection starts from the nominal nitrogen ratings. Oxygen and argon can be estimated from nitrogen for preliminary sizing, while LNG, hydrogen, and other specialty services require service-specific review of capacity, materials, pressure, and cleaning. FWM confirms gas suitability and final sizing during engineering review.

Can the FWM AV 2K replace my existing vaporizer?

In most cases, yes. FWM builds AV Series units to match the footprint, connections, and performance of Thermax, Chart, Cryoquip, and Cryonorm ambient air vaporizers. Send your existing model number or a photo of the nameplate and FWM confirms the replacement path during engineering review.

Can the FWM AV 2K run continuous duty?

Ambient air vaporizers frost over time, so continuous service is supported by arranging multiple units or banks with switching so one set runs while another defrosts. FWM reviews flow, switching intervals, and site conditions to size the arrangement.

AV Series · Ambient Air Vaporizer

FWM AV 2K Ambient Air Vaporizer

AV-2K-4x8-AL

Built to order · See lead times

Ambient-air vaporization of liquid nitrogen, oxygen, and argon for higher-flow cryogenic gas supply, built to print in the USA with FWM VaporCore finned-aluminum construction and cleaned for oxygen service.

Nominal N₂ capacity

2,000SCFH

MAWP

250 / 600 / 700 PSIG

Footprint

25 x 25in

Overall Height

131in

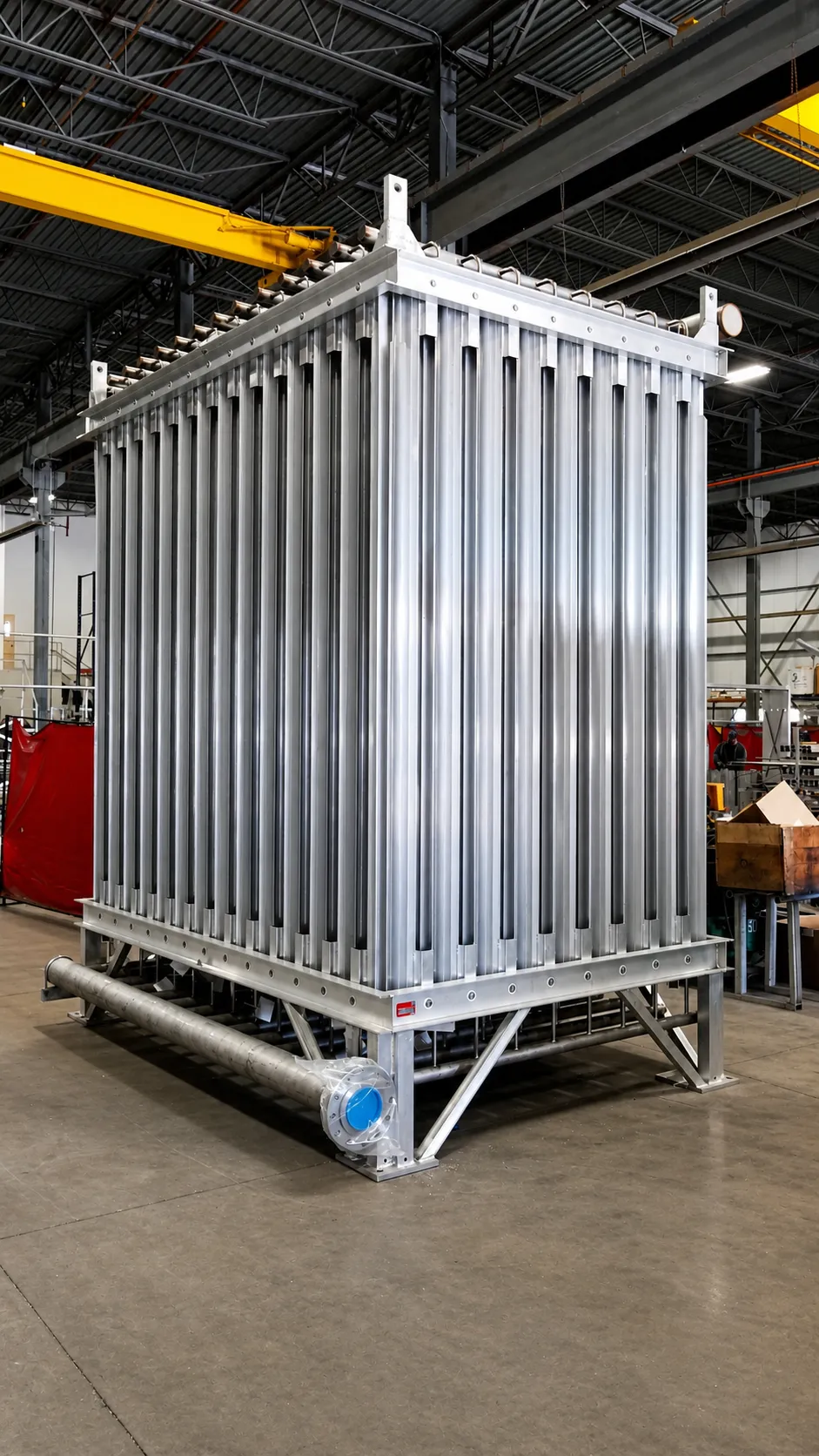

A finished FWM AV Series ambient-air vaporizer with a full bank of vertical finned-aluminum elements on the shop floor — Representative FWM AV Series build · Hudson, NH

Request a Quote Request Engineering Review Request Drawing

View AV Series comparison

Full specifications

Full specifications for the AV-2K-4x8-AL vaporizer
Model (AV)	AV-2K-4x8-AL
Model class	AV 2K
Published rating basis	Nominal 8-hour nitrogen vaporization rating
Nominal nitrogen capacity	2,000 SCFH
Array geometry	4 finned extrusions, 8-ft length class
MAWP options	250 / 600 / 700 PSIG (configuration dependent)
Standard configuration	Finned-aluminum ambient air vaporizer, cleaned for oxygen service
Overall dimensions (W × D × H)	25" × 25" × 131"
Footprint (W × D)	25" x 25"
Material	Aluminum
Oxygen service	Cleaned for oxygen service
Capacity tier	Compact

Nominal capacity shown for product comparison. Final performance depends on gas service, pressure, duty cycle, ambient conditions, installation, and engineering review.

Rating basis. Ratings are nominal 8-hour nitrogen vaporization ratings for model-selection guidance. Final selection depends on gas service, required flow, duty cycle, inlet and outlet pressure, ambient temperature, humidity, approach temperature, installation layout, connections, and documentation. Consult FWM for engineering review before purchase.

VaporCore construction. FWM VaporCore heat-transfer construction: finned aluminum extrusions built to ASME B31.3, arranged 12 in on center with a 4 in gap, tip to tip. The fin count and length class are listed for each model. MAWP options are 250, 600, and 700 PSIG and are configuration dependent. Pressure rating is confirmed by FWM.

Gas conversion. For preliminary estimating only: oxygen capacity is approximately 0.92x the nitrogen rating and argon approximately 1.14x. Hydrogen, LNG, ethylene, and specialty-gas service require FWM engineering review for capacity, materials, pressure, and cleaning. FWM confirms final sizing.

Oxygen service. All units are cleaned for oxygen service. Oxygen-service cleaning and documentation are confirmed with FWM for the final configuration.

Dimensions and connections

Reference dimensions are available for the FWM AV 2K. Overall envelope and footprint are listed above; connection location, required operating clearance, base mounting, and rigging details are confirmed on the dimensioned drawing.

Overall envelope: 25" × 25" × 131"
Base footprint (W × D): 25" x 25"

View reference drawing Request certified drawing Request STEP file

Reference dimensions are provided for layout planning. Certified drawings and STEP files are issued during engineering review.

Application guidance

Potential applications

Standard preliminary gas services for the AV Series.

Nitrogen
Oxygen
Argon

Engineering review required

Confirmed by FWM for capacity, materials, pressure, and cleaning.

Minimum design ambient temperature
Continuous duty
High humidity or icing
Specialty gases (LNG, hydrogen, ethylene, unusual mixtures)
Unusual inlet or outlet pressures
Restricted natural airflow
Code-specific installations
Oxygen-service cleaning and documentation

Published ratings are based on stated reference conditions. Actual performance depends on gas, pressure, ambient conditions, duty cycle, installation, and defrost strategy.

Open the sizing resource

Construction and documentation

FWM VaporCore finned-aluminum heat-transfer construction, cleaned for oxygen service. Documents and drawings are issued during engineering review.

AV Series Catalog
Request catalog
Individual Model Data Sheet
View / Print Data Sheet
Reference Dimensional Drawing
Request drawing
Installation Guide
Request guide
Operation and Maintenance Guide
Request guide
Oxygen-Service Documentation Overview
Request documentation
Certified Drawing or STEP Request
Request certified drawing / STEP
Replacement Cross-Reference Request
Open cross-reference

Data sheets open as printable web pages. Drawings, certified drawings, STEP files, and guides are confirmed and issued during engineering review.

Compare adjacent models

See the FWM AV 2K next to the adjacent standard AV models by nominal capacity.

One size down

Smallest standard model in the AV Series

This model

FWM AV 2K

2,000 SCFH

Footprint 25" x 25"

One size up

FWM AV 2.5K

2,500 SCFH

View model

Add to compare in the full table Request a Quote

Replacing an existing vaporizer?

Send your existing manufacturer, model number, nameplate photo, flow, pressure, gas service, overall dimensions, and connection location. FWM reviews dimensional, flow, pressure, and service requirements before recommending a replacement. The FWM AV 2K is engineered to match the footprint, connections, and performance of comparable ambient air vaporizers.

Thermax Chart Cryoquip Cryonorm

Start Replacement Review

FWM AV 2K questions

Confirm the right configuration for the FWM AV 2K

Send your flow, pressure, gas, duty cycle, ambient conditions, and installation requirements and FWM will confirm the model, connections, and documentation.
